最高タイプ (SaikouType) ST110r2 Programmable Mechanical Keyboard Project

2018.05.21 | Yuki Rea

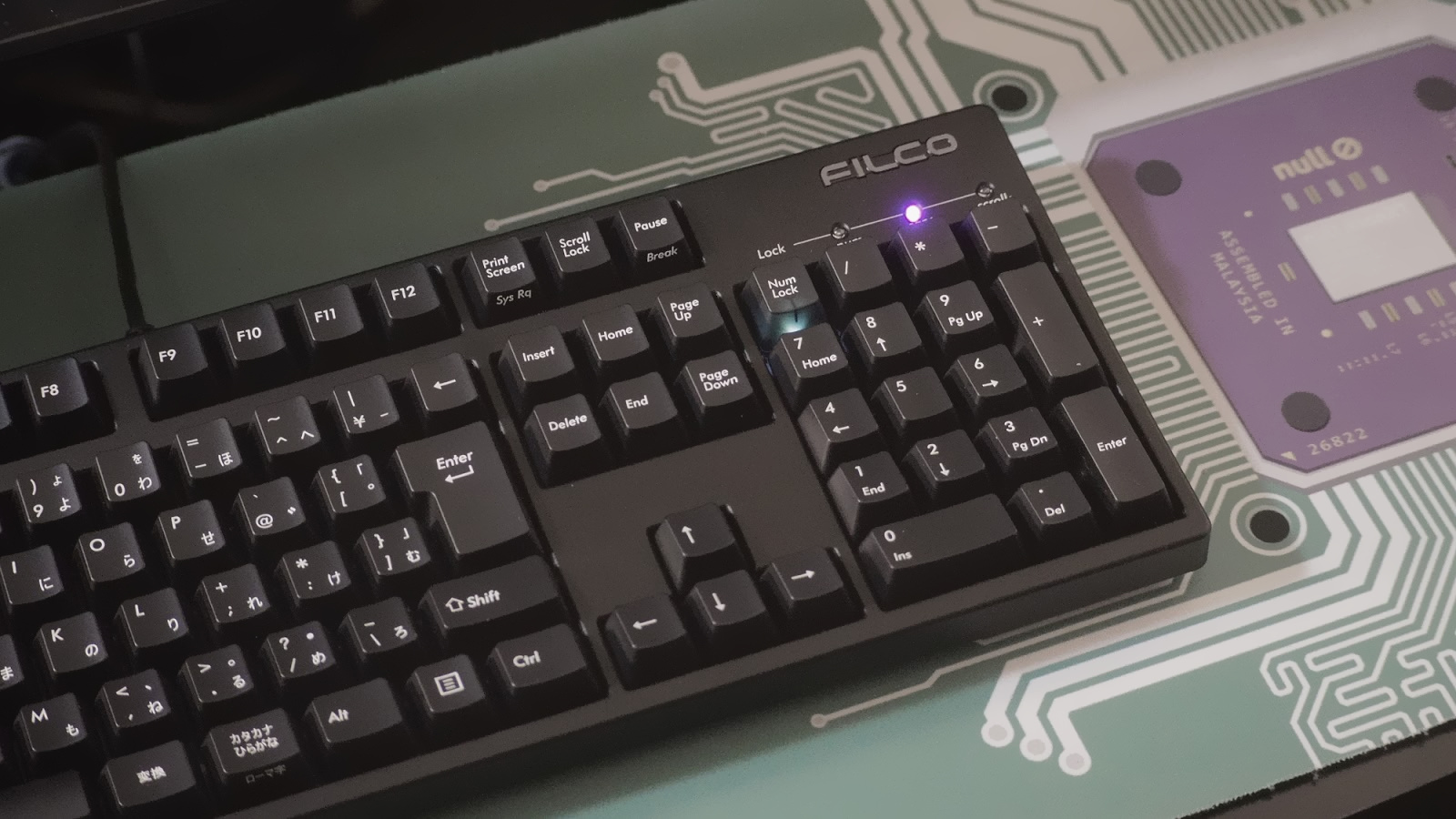

The SaikouType NKBM-ST110r2 is an open source, Cherry MX Mechanical keyboard project which uses a programmable Atmel AT90USB1286 Micro-controller in the form of a Teensy++ 2.0 development board. The goal of this project is to create a programmable keyboard that anyone can build and program at home. Having a 100% through-hole design means that even soldering novices should be able to assemble their own keyboard. This design also tries to cut down on all non-essential parts to reduce the total amount of components that one would need to source in order to complete assembly. This design fits existing Filco Majestouch and some Filco clone case designs, including the Majestouch Convertible 2 with it's battery compartment. The ST110r2 has a language / layout agnostic PCB design, so only one version needs to be manufactured for a wide range of languages / layouts to cut costs and consolidate stock. The ST110r2 can be programmed from scratch, with tmk_keyboard firmware, or with my null_keyboard firmware.


Details

Current Release Version: 2.0-2018.02.11

Supported Layouts:

・ JIS
・ JIS thumb-shift and/or split space bar
・ ISO
・ US-ANSI


Hardware Features:

・ Free and open source, designed using free software, GPL v2.0 license

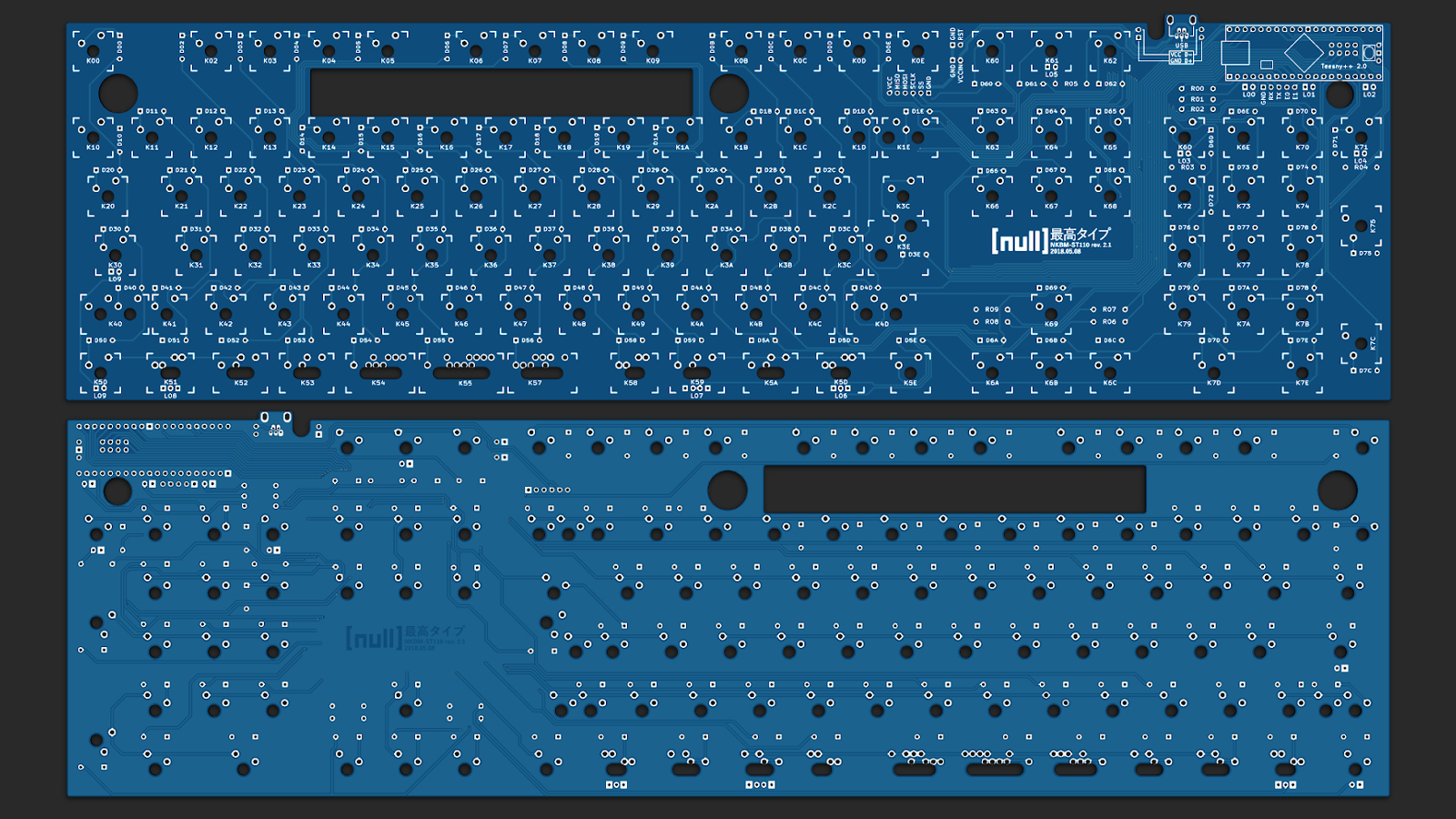

・ Supports Filco Majestouch and Filco clone cases
・ Removable cable when using Majestouch Convertible 2 Case

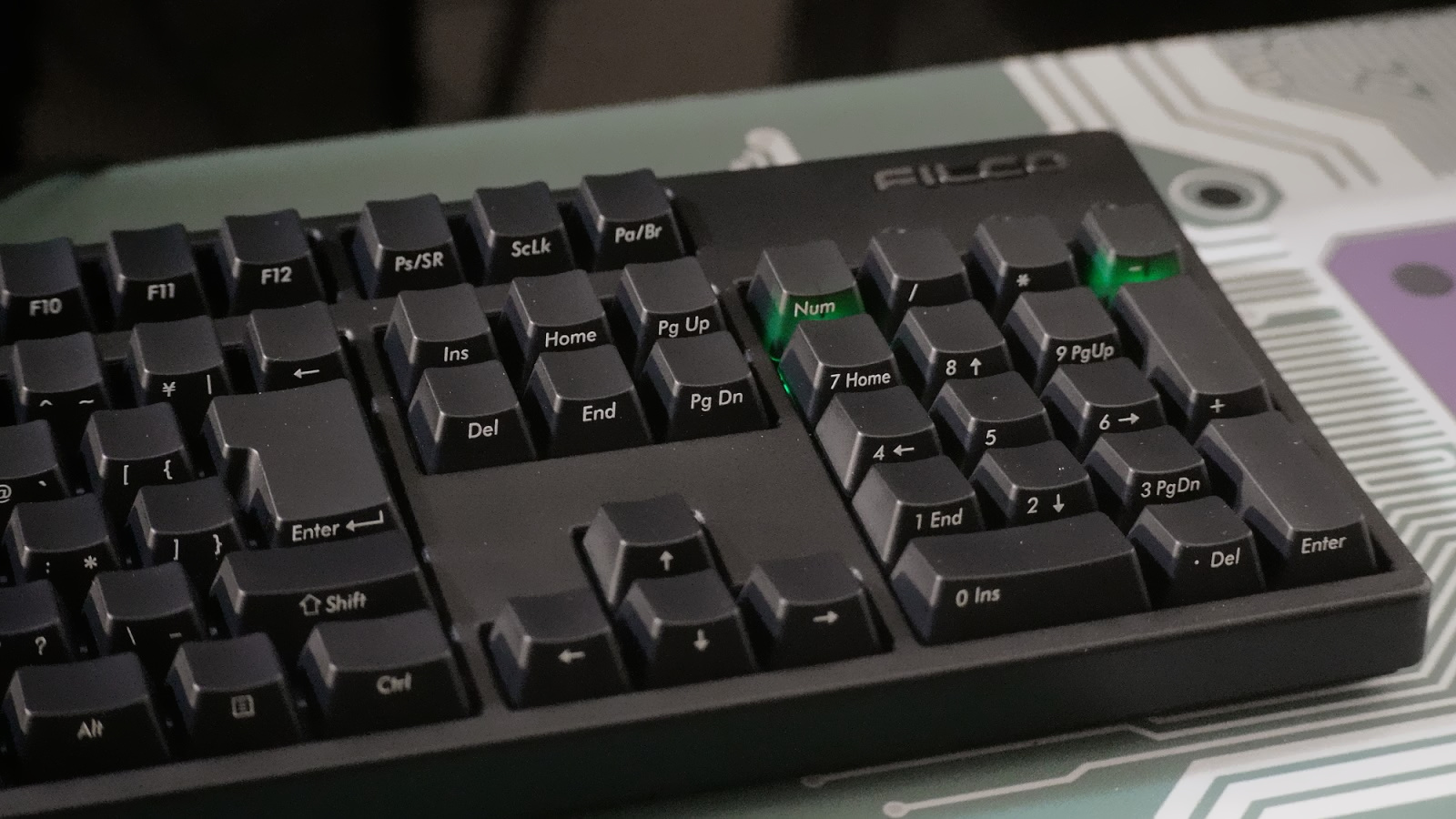

・ Under-key-cap LED indicators

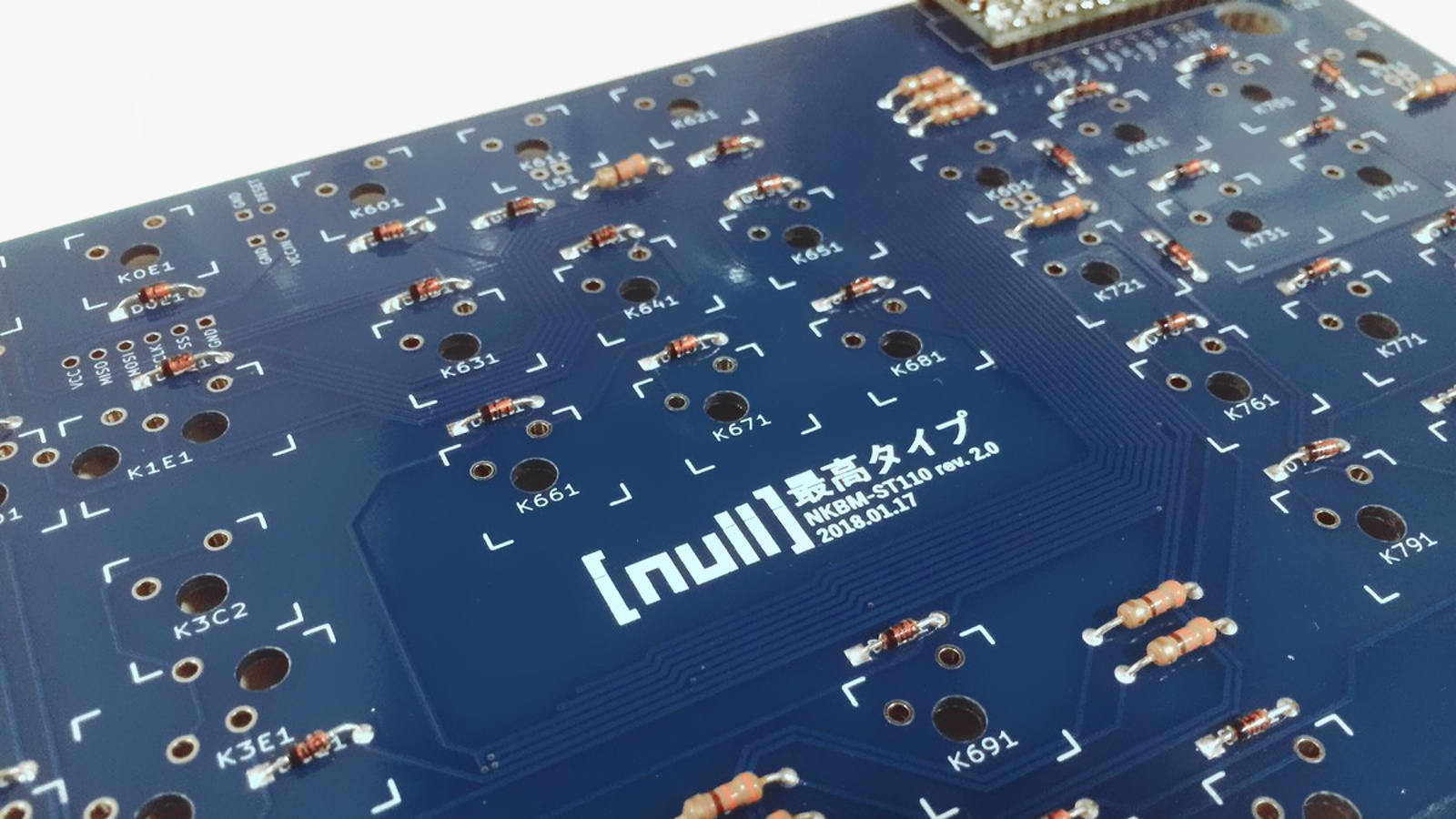

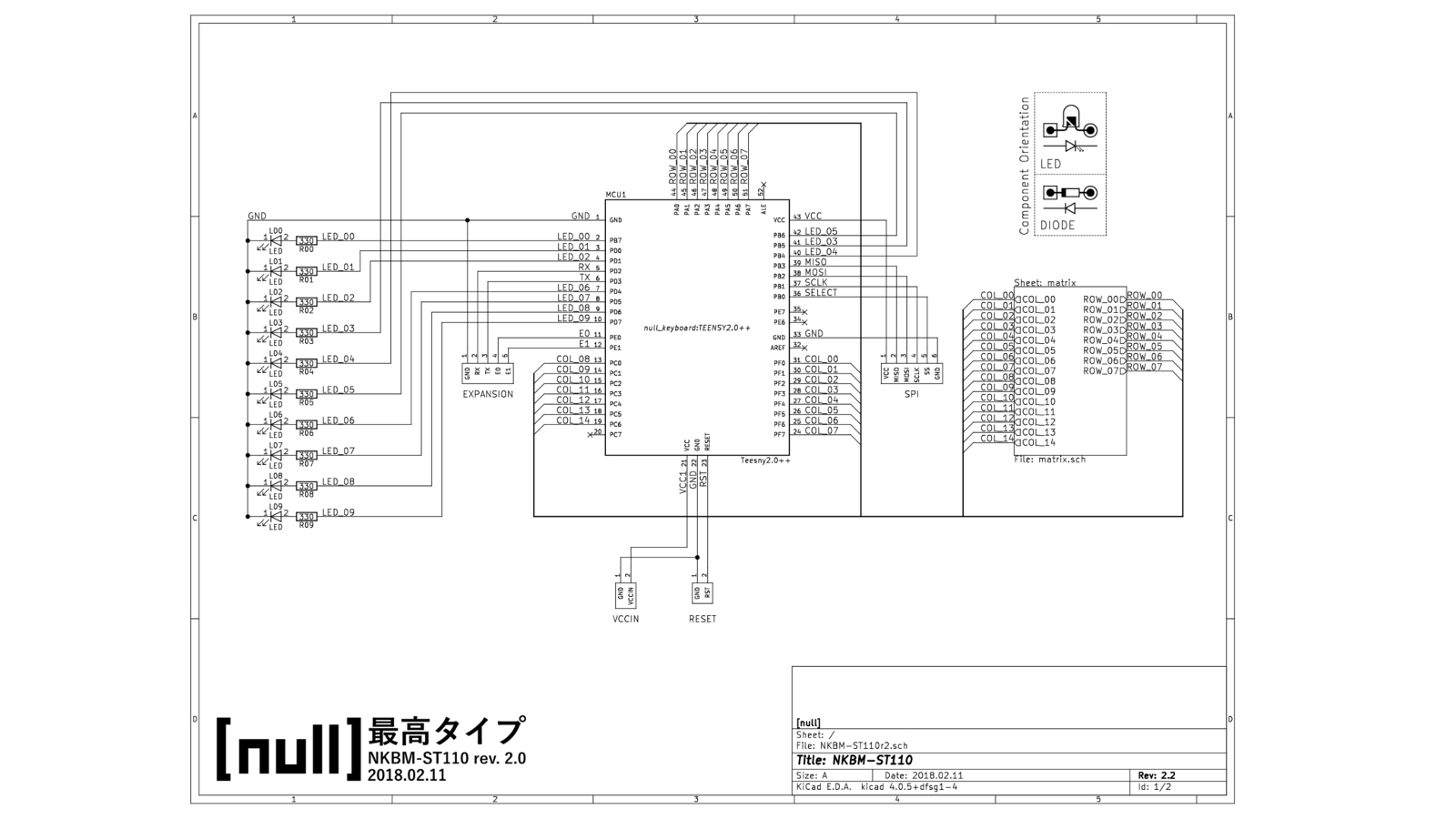

・ Through-hole design for easy assembly
・ Atmel AVR AT90USB1286 MCU
・ Universal layout
・ Expansion headers for possible future expansion modules
・ Bluetooth expansion module in prototype stage


Default Firmware Features:

・ Free and open source, mostly GPL v2.0 license
・ null_keyboard firmware is written in C
・ null_keyboard is tmk_keyboard fork and mostly compatible
・ Customizable LED animations
・ On-the-fly LED brightness control
・ N-key rollover
・ Advanced macro support, create precise timed macros, includes example code for OS detection
・ PIN protected macro layer for password managment
・ HEX-shift numpad, numpad becomes HEX input pad while holding down numpad enter/shift key
・ Integrated mouse, numpad becomes mouse whe holding Caps/shift or with a toggle
・ Game mode turns off Windows key and Japanese keys when in games
・ Modern scroll lock, arrow keys become mouse scroll wheel when holding work scroll lock
・ Telemetry in development, currently only has resetable key-press counter
・ Bluetooth support in early development
・ and more


Parts List:

・ ~110 Cherry MX or Cherry MX clone switches
・ ~110 1N4148 diodes
・ 3-10 3mm LEDs 3v or 5v
・ 3-10 330 ohm resistors if using 3v LEDs
・ 2.54mm pitch pins and headers (for Teensy and optional expansion ports)
・ Teensy++ 2.0 or compatible
・ USB Mini B male and female connectors (optional)
・ Filco or compatible key-caps, case, and switch mount plate
